W5W T10 LED BULBS MAGALL M1 RED 300LM 12V CANBUS POSITION BRAKE LIGHT
Regular price:
Regular price:
product unavailable
add to wish list
Description
W5W T10 LED BULBS MAGALL M1 RED 300LM 12V CANBUS POSITION BRAKE LIGHT

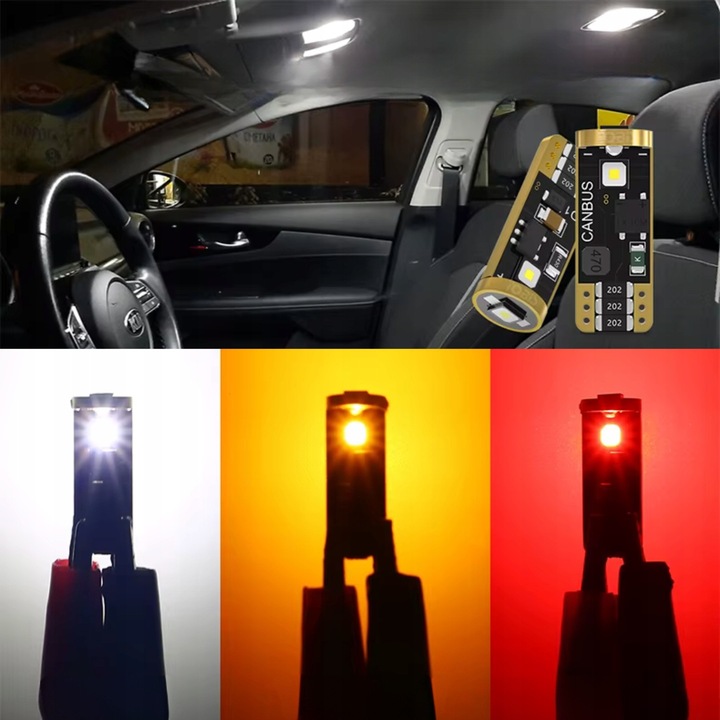

W5W T10 LED BULBS MAGALL M1 with modern 3×SMD 3838 produce intense red light with a brightness of 300 lm, which increases the vehicle's visibility and emphasises its modern character.
It is the ideal light source for rear position lights, brake lights and door lamps, guaranteeing clear, intense light and a modern look for your vehicle.
⚙️ TECHNICAL SPECIFICATIONS – MAGALL M1 W5W LED T10
- Fitting: W5W / T10
- Base type: W2.1x9.5d
- Supply voltage: 12V
- Rated power: 2.5 W
- Current draw: 0.2 A
- Luminous flux: 300 lm
- Light colour: red
- LED type: 3 × SMD 3838
- Bulb length: 25.5 mm
- Width: 10 mm
- Material: PCB
- Operating temperature: from –40 °C to +80 °C
- Sealing rating: IP65 – waterproof
- CANBUS: ✅ Yes – compatible with approx. 99% of vehicles (explained in more detail at the end of the listing)
- Quantity in set: 2 pcs
USES OF RED MAGALL M1 BULBS
BULBS W5W LED T10 MAGALL M1 in red are the ideal choice wherever intense red lightis required. They work perfectly as:
- rear position lights,
- brake lights,
- door lamps,
- boot interior lighting (if red light is required),
- additional decorative lighting in red.
Quick replacement – 1:1 installation
LED bulbs MAGALL M1 W5W have compact dimensions (25.5 × 10 mm), so they fit directly in place of classic halogen bulbs.
Just remove the old bulb and insert the new one – with no extra modifications or adapters.
✅ Strong, even light – modern look and excellent visibility
W5W T10 LED BULBS MAGALL M1 with modern 3×SMD 3838 produce intense red light with a brightness of 300 lm, which increases road safety and improves the vehicle's visibility.
It is the ideal light source for rear position lights, brake lights and door lamps, guaranteeing clear, intense light and a modern look.
✅ Efficient design and effective heat dissipation = longer lifespan
Every The W5W LED T10 MAGALL M1 bulb has been designed to provide stable, reliable operation even with long-term use.
The compact design with a high-quality PCB and precisely placed electronic components ensure optimal dissipation of the heat generated by the LEDs 3×SMD 3838.
This keeps the operating temperature within a safe range from –40 °C to +80 °C, which:
- prevents the LEDs from overheating,
- protects the electronics from damage,
- extends the bulb's lifespan,
- keeps constant brightness and stable, flicker-free light.
✅ Modern 3×SMD 3838 LEDs = maximum brightness and efficiency
W W5W LED T10 MAGALL M1 bulbs use modern SMD 3838, which stand out for high light efficiency, stable operation and intense light colour.
Each bulb has 3 efficient LED sources, which:
- produce an intense luminous flux 300 lm,
- emit vivid red light, ideal for rear position and brake lights,
- light up immediately when switched on – with no delay or warm-up,
- work efficiently with low current draw (0.2 A) and power 2.5 W,
- provide a wide beam angle and even light distribution.
Thanks to the SMD 3838, the MAGALL M1 offer an excellent combination of brightness, efficiency and intense colour, making them the ideal choice for rear position lights, brake lights and door lamps.
✅ IP65 water resistance – ready for any weather
W5W T10 LED BULBS MAGALL M1 are designed to work in all weather conditions. They perform perfectly both inside and outside the vehicle – no worries about failure in rain, snow or mud.
Resistant to water, moisture, dust and dirt – ideal for places exposed to harsh conditions, such as rear position lights, brake lights or door lamps.
✅Important product information – benefits and safety rules
1. Operating temperature – modern and controlled Our LED bulbs reach a temperature of about 100°C during operation. This is a normal, fully controlled design feature that shows they are working correctly and efficiently.
2. Safety for your car – a key advantage over tradition Unlike our LEDs, traditional halogen car bulbs generate extreme heat. The temperature of their glass bulb reaches 200°C to as much as 250°C! Thanks to a much lower operating temperature, our LED bulbs are 100% safe for factory lamps and headlights. There is no risk of damage, clouding or melting, a common problem with overheating halogens.
3. Warning – your safety during installation Remember that even 100°C can cause burns. Always avoid touching the bulb while it is on and immediately after switching it off. Before fitting or removing it, wait a few moments to be sure it has cooled down completely.
Also available in other colours
The W5W T10 LED BULBS MAGALL M1 is available not only in white but also in:
- amber
- red
You will find all versions in our other listings.
FAQ – Frequently asked questions
1. Will the W5W LED T10 MAGALL M1 bulbs fit my car?
✅ Yes. If your car uses W5W / T10, these models can be fitted with no modifications. Just remove the old bulb and insert the new one.
2. Are the bulbs brighter than traditional halogens?
✅ Yes. Thanks to modern 3×SMD 3838 the bulbs reach a brightness of 300 lm and emit clean white light at 6000 K, which is noticeably brighter and more even than classic bulbs.
3. Can I use these bulbs outside the vehicle?
✅ Yes. The bulbs have a sealing rating of IP65, which means they are resistant to dust and moisture – they can safely be used for exterior lighting too.
5. What should I do if the bulb does not light up after installation?
✅Simply remove it from the socket and turn it 180° – LEDs are polarised components, so in some cars the polarity needs to be reversed.
